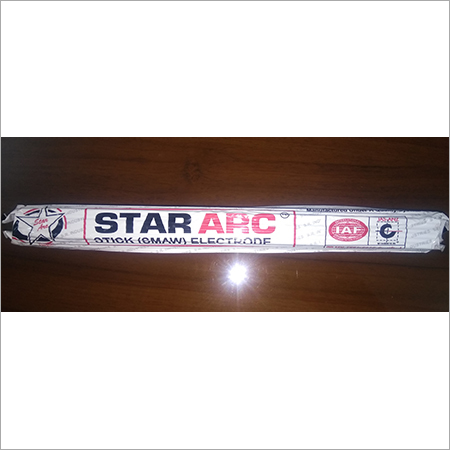

Covered Arc Welding Electrode

Covered Arc Welding Electrode
Covered Arc Welding Electrode
Send Inquiry
Product Code : E309/309L-16
Brand Name : S. R. INDUSTRIES
Product Description

E309/309L-16 is a stainless steel electrode idea; for joining stainless steels to themselves or to carbon and lo-alloy steels. Carbon content in the weld metal is held to .04% max which gives it increased resistance to intergranular corrosion.

Typical Applications : joining hard to weld steels and for dissimilar metal welding wherever maximum ductility is required when joining dissimilar steels to themselves or to stainless steels

AWS Class E309/309L-16

Classification : AWS A5.4/A5.4M:2006

Alloy: E309L

ASME SFA A5.4

Welding Position: F, V, OH, H

Current: AC-DCEP

Tensile Strength, kpsi:

75 min

Yield Strength, kpsi:

*NS

Elongation %:

30 min

Not Specified

Typical Wire Chemistry as per AWS A5.4 (single values are maximum)

C

Cr

Ni

Mo

Mn

Si

P

S

Cu

0.04

22.0-25.0

12.0-14.0

0.75

0.5-2.5

1.00

0.04

0.03

0.75


Typical Welding Parameters

Diameter

Process

Volt

Amps (flat)

Amps (V/OH)

in

(mm)

3/32

(2.4)

SMAW

24-28

70-85

65-75

1/8

(3.2)

SMAW

26-30

85-110

80-90

5/32

(4.0)

SMAW

28-32

110-140

100-120

3/16

(4.8)

SMAW

28-32

120-160

110-130


Download Details
Trade Information
  • Main Domestic Market
  • Himachal Pradesh, Haryana, Delhi, Chandigarh
